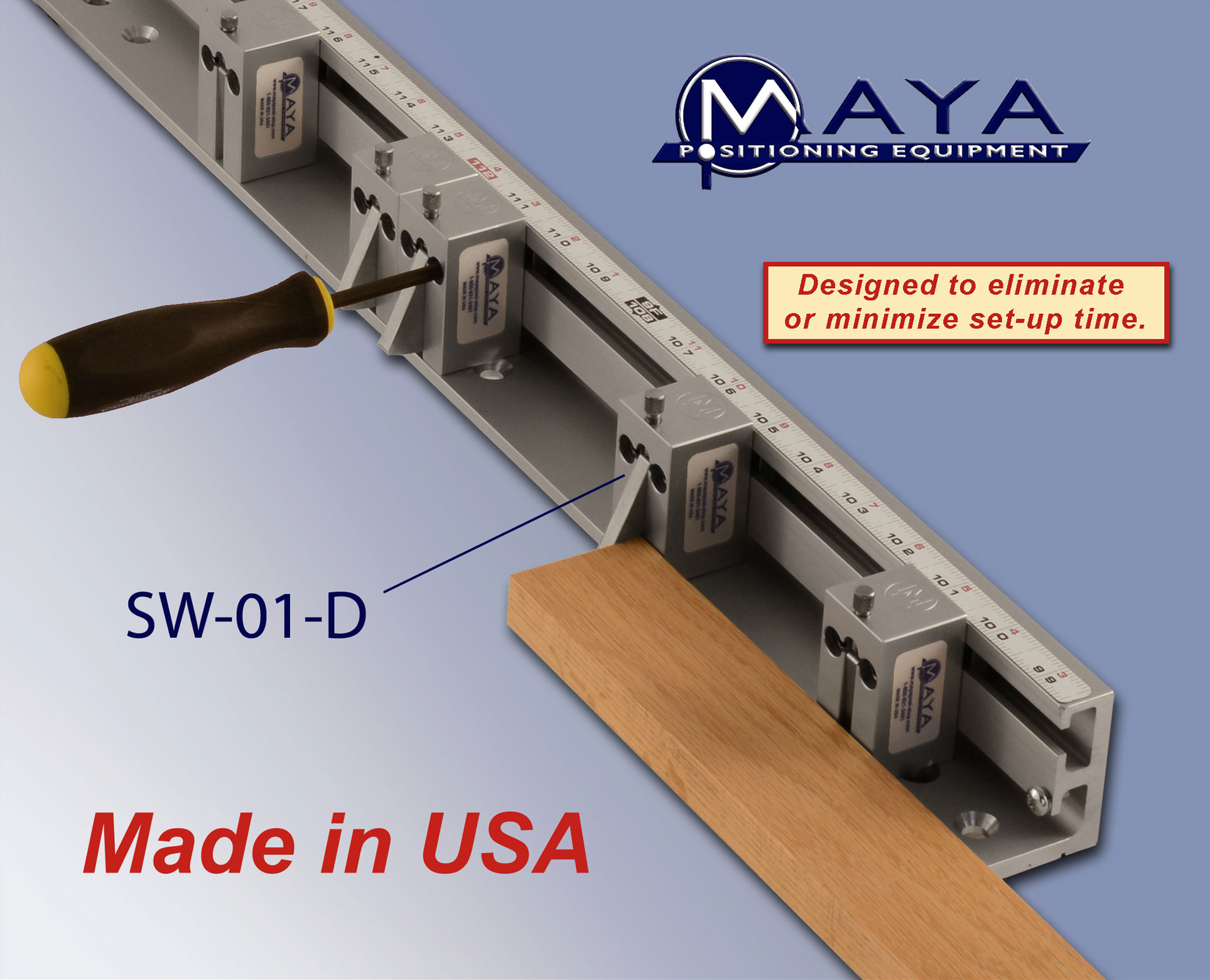

Swing Posi-Stop Set-Up
For Repetitive Cutting and Drilling Operations
Minimum 3/8″ work piece thickness. Swing Posi-Stops are sold by unit. Universal Guide Rails are sold separately by length. See price list.
Specifications
| DESCRIPTION | PART NO. | STOP | OVERALL | WEIGHT | APPLICATION |
| PLATE (in.) | HxWxL (in.) | (lbs.) | (example) | ||
| Swing Posi-Stop | SW-01-D | 1 x 0.62 x 0.25 | 1.24 x 1.23 x 2.12 | 0.40 | For repetitive cutting or drilling |
Features
- Gravity action of swing plates is supported by low retraction force compression springs.
- Predrilled mounting holes allow for easy installation of the unlimited length guide rails on any flat surface.
- Impact plate protrusions are controlled with quick-action, stainless steel thumb screws or optional set screws.
- Swing plates can be pulled out from the body (for cleaning) without removing them from the guide rail.
- Dual-hole tool steel plates provide positive locking of the stop, resisting high dynamic impact forces.
- Now with 304 stainless steel swing impact plates!
