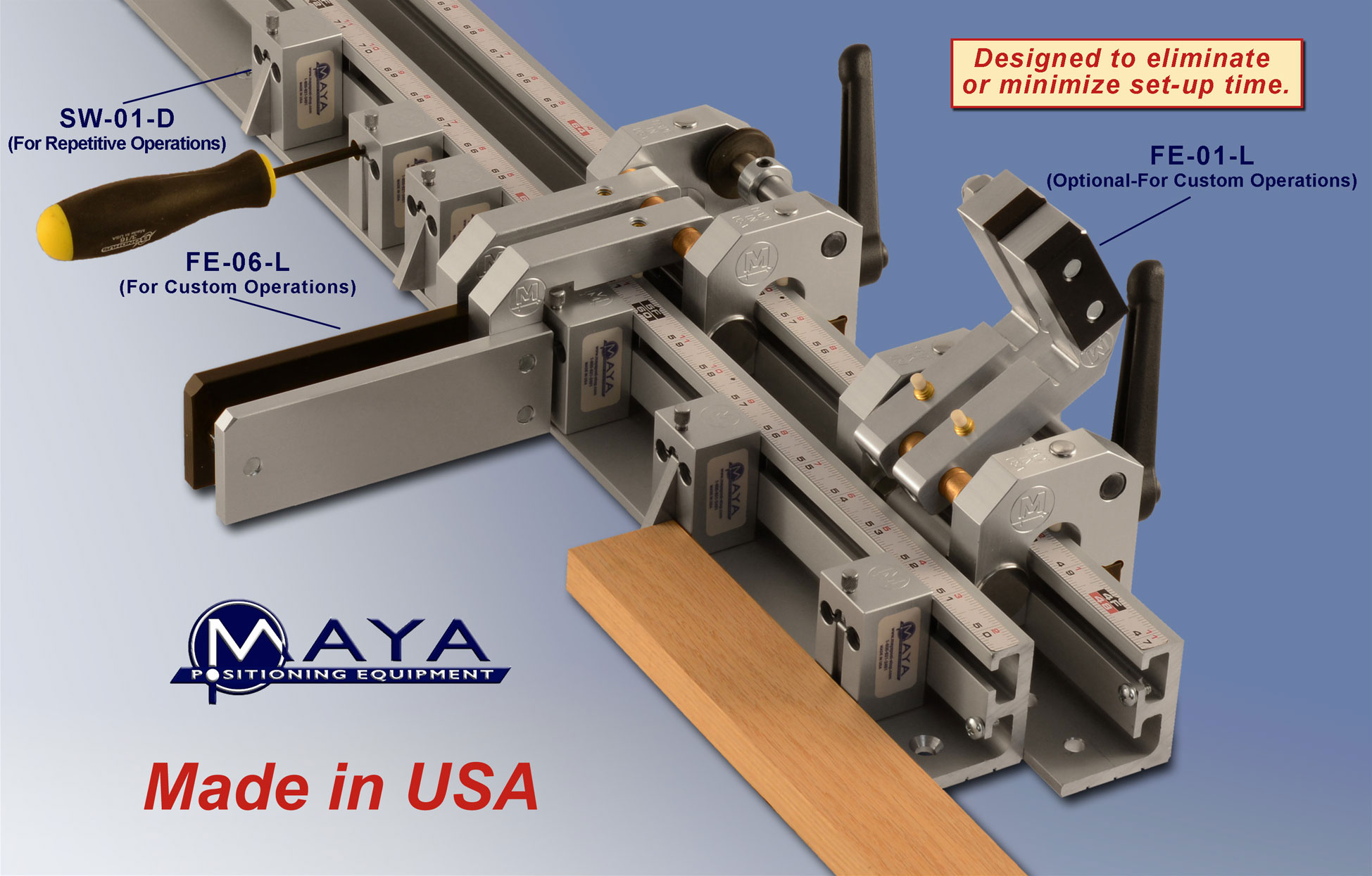

Universal Posi-Stop Set-Up
For Repetitive and Custom Cutting and Drilling Operations
Swing and Flip-Up Posi-Stops are sold by unit. Universal Guide Rails are sold separately by length. Two Guide Rails are needed when using Swing and Flip Stops together. See price list.
Specifications
| DESCRIPTION | PART NO. | STOP | OVERALL | WEIGHT | APPLICATION |
| PLATE (in.) | HxWxL (in.) | (lbs.) | (example) | ||
| Swing Posi-Stop | SW-01-D | 1 x 0.62 x 0.25 | 1.24 x 1.23 x 2.12 | 0.40 | For repetitive cutting or drilling |
| 1″ Extended Flip-Stop | FE-01-L FE-01-R | 1 x 2 x 0.375 | 3.5 x 4 x 9 | 3.00 | For custom cutting or drilling |
| 6″ Extended Flip-Stop | FE-06-L FE-06-R | 6 x 2 x 0.375 | 3.5 x 4 x 14 | 3.80 | For custom cutting or drilling |
Features
- Extended flip arms allow for overpassing the Swing-Stops and positioning of Flip-Stop at any desired location.
- Choice of 4 Extended Arm Flip-Stop models for your custom operations.
- Choice of unlimited number of Swing-Stops for your repetitive operations.
- Unlimited length of the Universal Guide Rails.
